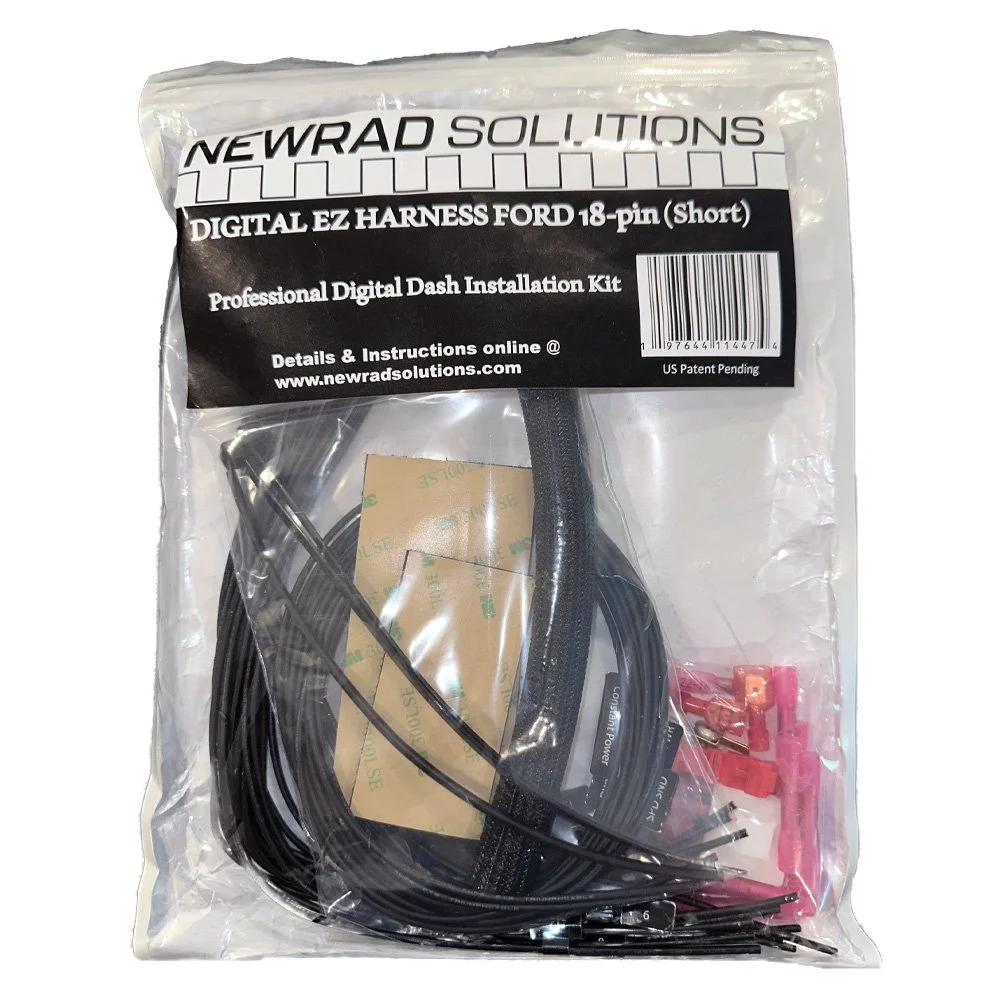

Digital EZ Harness Professional Installation Kit for Ford 18-Pin (Short)

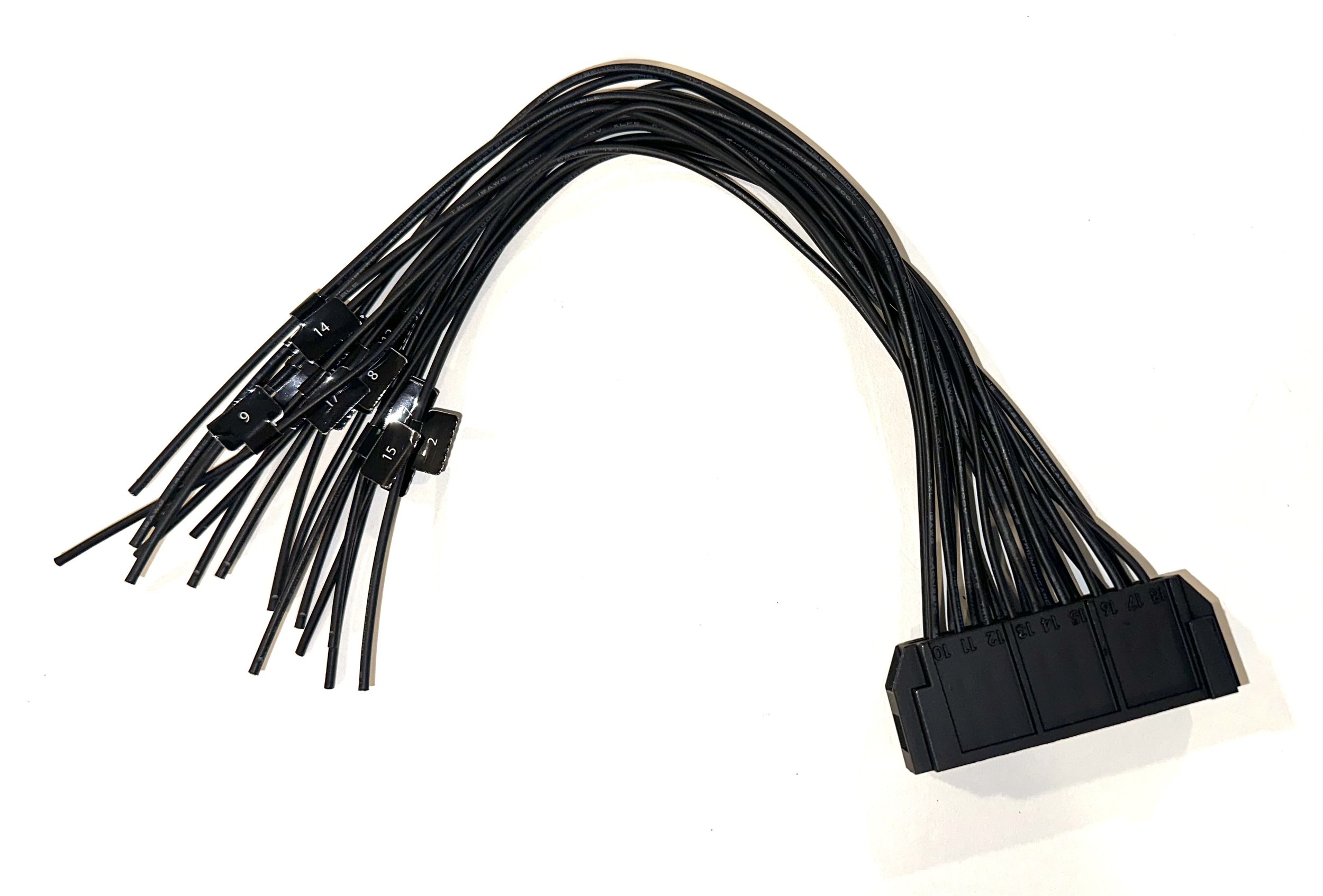

Use the Digital EZ harness to give you that professional touch for your aftermarket digital gauge installation! The connectors are a direct fit onto the factory 18-pin connector in your dash. No need to hack up your OEM wiring and can be reversed in the future. Utilizing 18-AWG automotive grade TXL wire, the kit comes with wire loom and pre labeled wires with hardware to make your install EZ. The factory connectors often have minimal length wires which makes splicing even more of a head ache. We solve that problem for you! Save time and frustration with the Digital EZ harness installation kits.
Note: This kit can be used for both the 1974-1978 and 1980-1986 Ford Trucks/Broncos.
IMPORTANT: Vehicles that had factory full gauge cluster (see picture below) will use the Ford 18-pin connector.
If your vehicle had an OEM gauge cluster that only had “idiot lights” you will use our Ford 14-pin single kit:
This Ford 18-pin short kit is recommended for 1974-1978 Ford Trucks/Bronco.
The 1973 Ford trucks will use our 1967-1973 Ford 18-pin kit:
Note: This kit can be used for both the 1974-1978 and 1980-1986 Ford Trucks/Broncos.
For 1980-1986 Ford truck/Bronco using Dakota Digital and OneGauge gauge systems the recommend kit is our “regular” length kit. The hardware is the same except for the length of the wire.
Includes hardware and wires for tapping your fuse box for 12V power, ground, GPS, etc.
Some wires won’t be used based on year of your vehicle and the wire end can be capped off with the supplied heat shrink tubing or you can simply de-pin the wire from the connector.
*Depending on your installation location & application extra butt connectors may be needed.
*** U.S. Patent Pending
